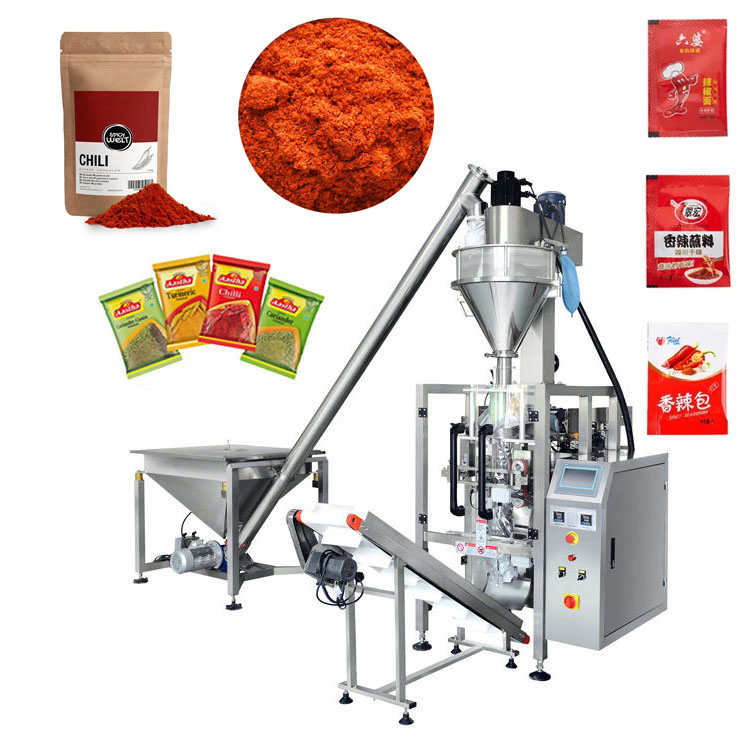

Chili powder vertical packaging machine

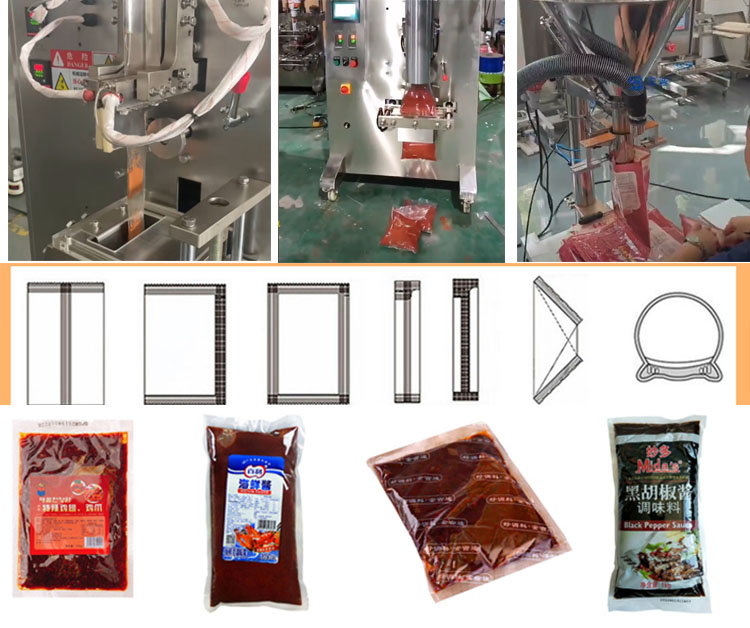

The chili powder vertical packaging machine is designed for packaging dusty, fluid powders like chili powder. It fully automates the feeding, metering, bagging, filling, and sealing processes, replacing manual packaging with reduced costs and improved efficiency. Precise metering and stable sealing ensure product quality and extend shelf life. To prevent contamination of the chili powder during the packaging process, the machine is constructed of 304 stainless steel, making it hygienic and easy to clean. Each bag can hold 5-500g, meeting diverse needs from small samples to home packaging and commercial catering. The machine can produce 40-120 bags per minute. Bags are typically made of moisture-proof and leak-proof composite films, such as PET/PE and aluminum-plastic composite films. Bag shapes can be customized, including three-side seal, four-side seal, pillow-shaped, and box-shaped.

Chili powder vertical packaging machine video

What types of chili powder vertical packaging machines are available?

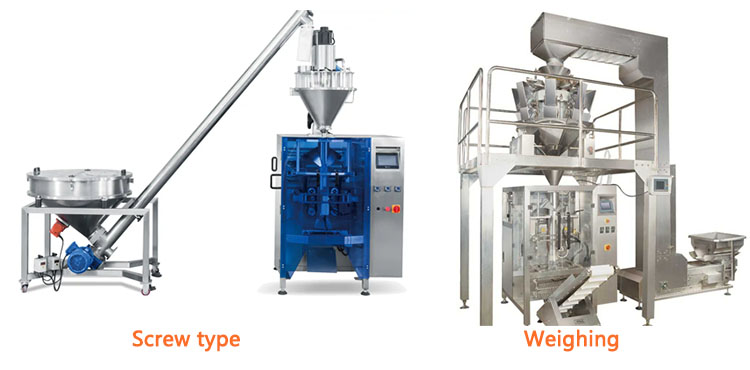

Chili powder vertical packaging machines are categorized as screw-type or weighing-type, depending on their metering method and the properties of the chili powder being packaged. The appropriate model can be selected based on your needs.

Screw-type chili powder vertical packaging machines: These machines meter chili powder by controlling the number of screw revolutions. They are suitable for fine chili powder with high fineness, good flowability, and uniform composition. They offer a metering accuracy of ±1% and a packaging speed of 40-100 bags/minute, making them ideal for small- to medium-sized batch production. However, they are unsuitable for chili powders containing a high concentration of chili seeds or granules or high oil content, as these are prone to metering inaccuracies or clogging due to material variations.

Weighing-type chili powder vertical packaging machines: These machines utilize weighing-type metering and are equipped with an electronic weighing module. These machines typically utilize a combination scale (with multiple hoppers) and a computer control system. These machines are particularly effective for packaging coarsely ground chili powder that is prone to clumping, uneven composition (such as chili powder containing flakes or granules), or mixed chili powders that require precise proportions. These machines can overcome the effects of varying chili powder flowability, achieving an accuracy of ±0.5%, but with a slower packaging speed of 20-60 bags/minute.

What are the advantages of Chili powder vertical packaging machine?

The chili powder vertical packaging machine is constructed from food-grade SUS304 stainless steel, meeting food hygiene requirements. It utilizes either a screw metering system or a weighing system, adjusting the filling speed to suit the chili powder's quality, with an accuracy of ±1%-±2%. A PLC, servo motor, and touchscreen drive control system ensure fully automated packaging, eliminating manual labor and reducing labor costs. The entire packaging process utilizes a closed structure, and the discharge port is equipped with a dust cover and negative pressure suction to reduce chili powder dust, protecting operator health and preventing material waste. Customizable parameters can be adjusted based on the chili powder's moisture and fineness, and features include code printing, easy-tear notches, and air venting to meet brand packaging needs.

How does the chili powder vertical packaging machine work?

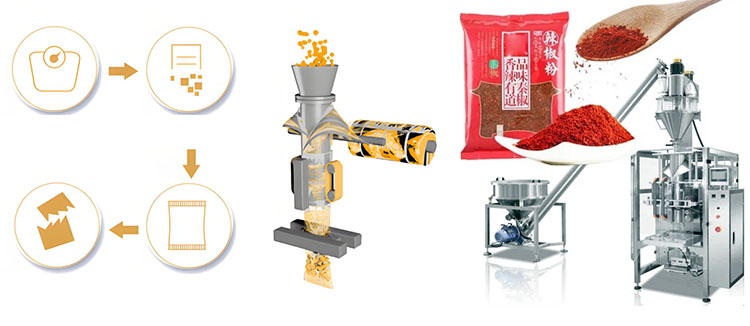

The chili powder vertical packaging machine first loads the packaged chili powder into a storage bin. The chili powder is weighed by a metering device, while the packaging film is stretched and folded into the pre-set bag shape. The measured chili powder enters the bag through the sealed discharge port. A heat sealer seals the bag and cuts it, and the finished chili powder is then transported to the designated location via a conveyor.

Chili powder vertical packaging machine specifications

Model	GX-220DKF	GX-320DKF	GX-420DKF
Max roll film width	220mm	320mm	420mm
Bag Length	10-150mm	10-190mm	10-260mm
Bag Width	20-100mm	60-150MM	120-200MM
Filling range	1-99G	10-500G	100-1000G
Dimension(LWH)	5204201590mm	6404801700mm	8904901850mm
Power	220V/110V 50HZ/60HZ 550W		220V/110V 50HZ/60HZ 600W
Weight	70KG	94KG	101KG

What are the applications of the chili powder vertical packaging machine?

The chili powder vertical packaging machine can be used to package a variety of chili powder types, including household chili flakes, restaurant chain seasonings, and hot pot base powders. It can package fine chili powder (e.g., ground dried chili peppers) in 80-120 mesh sizes, suitable for seasoning everyday stir-fries and salads, or as an ingredient in sauces and snacks during food processing. It can also package coarse chili powder (with a small amount of chopped chili pepper) in 40-60 mesh sizes for use in barbecue marinades, hot pot dry dishes, and to enhance the flavor of meat products such as sausages and bacon. The machine can also package pure chili powder (ground from a single chili variety, such as millet chili powder and Erjingtiao chili powder) to meet the demand for original chili flavor. It can also package compound chili powder (with added Sichuan peppercorns, cumin powder, salt, and sugar) for specific dishes (such as spicy crayfish and Xinjiang fried rice noodles) or convenience foods (such as instant noodle seasonings and self-heating hot pot dipping sauces). In addition, we can package chili powder in mild, medium, and extra-spicy grades to meet different needs, as well as moisture-resistant chili powder with added moisture-proof agents (suitable for long-term storage and e-commerce sales). We can also package pepper, cumin, curry powder, spices, MSG, sugar, and salt powders.

How to choose a chili powder vertical packaging machine?

When selecting a chili powder vertical packaging machine, we must first determine the properties of the chili powder to be packaged, such as flowability, density, viscosity, agglomeration, and coarse/fine powder. This directly determines the machine's metering method. The packaging speed per minute and the packaging volume per bag determine the machine's model, specifications, and power. We also need to consider the bag size, material, and shape. We can customize these to meet your needs.

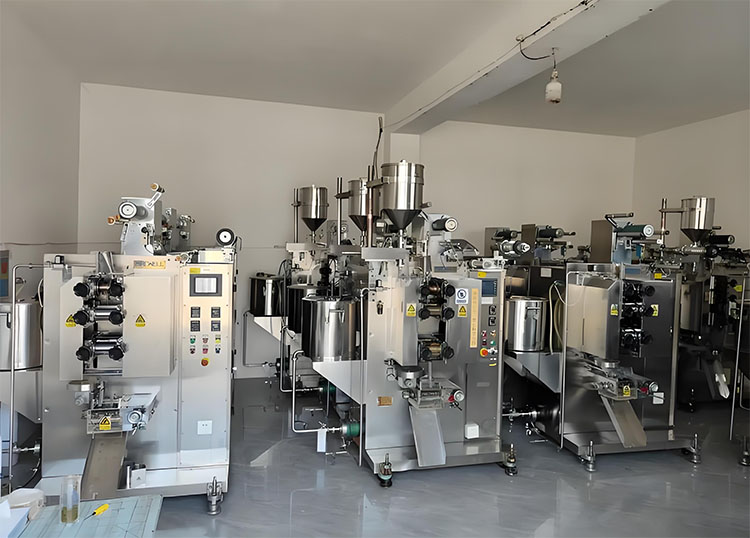

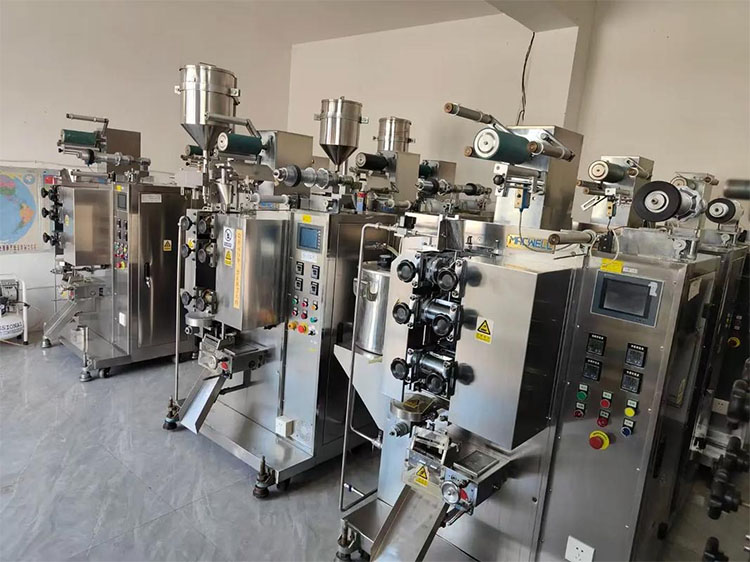

Chili powder vertical packaging machine manufacturer

Dahan Chili powder vertical packaging machine manufacturer is a Chinese manufacturer. In addition to standard models, we offer a comprehensive range of packaging machines, including screw, measuring cup, and weighing types. Our in-house technical team manufactures everything from components to complete machines, and our products are priced at cost, starting as low as $450. We also offer customized products based on the properties of the packaging material and add additional features, such as aeration (which can be equipped with nitrogen or carbon dioxide to extend shelf life) and vacuum (to remove air).
