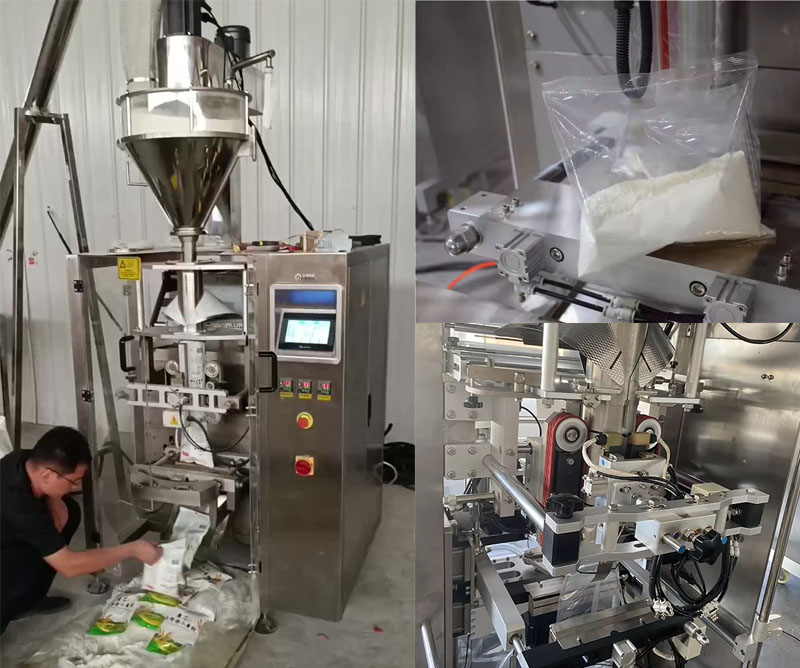

Cement powder packaging machine VFFS

The Cement powder packaging machine VFFS is used to package cement powder from bulk materials into bagged finished products. It automatically completes bag making, weighing, filling, sealing, and cutting operations. Each bag can hold 1-50 kg of cement powder, and the machine can package 30-150 bags per minute. Bag materials include laminated woven bags and paper-plastic composite bags, offering wear resistance and leak-proof properties. Bag sizes can be adjusted according to packaging volume, generally adapting to widths of 300-500 mm and lengths of 500-800 mm, meeting packaging needs for various scenarios from small-batch production to large-scale cement packaging plants.

Cement powder packaging machine VFFS Video

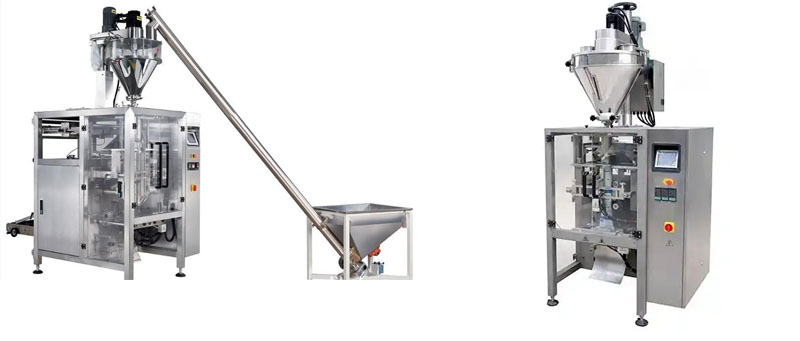

What types of Cement powder packaging machines VFFS are available?

Cement powder packaging machine VFFS can package cement powder from 1 kg to 50 kg. The model of VFFS packaging machine is different depending on the weight of cement powder to be packaged. We offer basic models that can package 30-80 bags of cement powder per minute for small and medium-sized use, as well as high-speed VFFS packaging machines that can package 150 bags per minute for large cement packaging plants. You can choose the appropriate model according to your packaging speed.

What are the advantages of the Cement powder packaging machine VFFS?

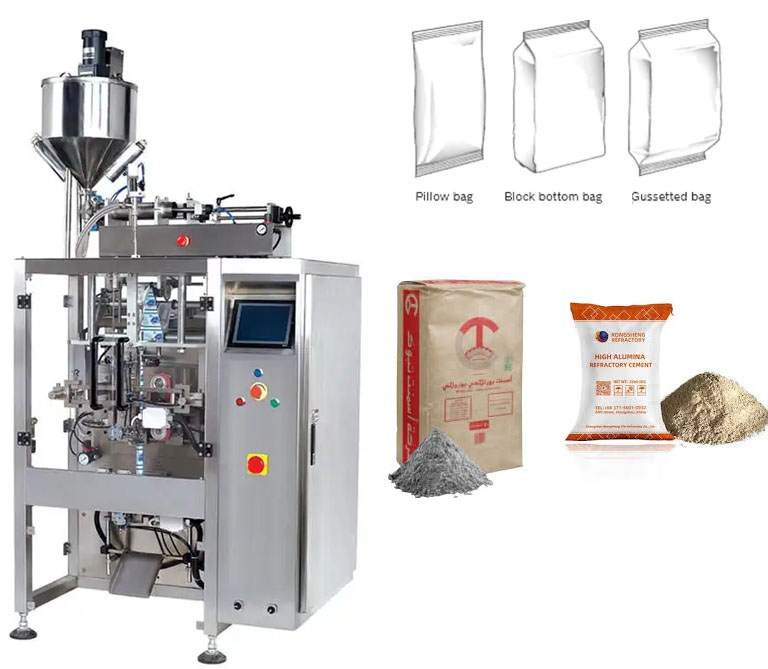

The Cement powder packaging machine VFFS can replace manual packaging, achieving automation and standardization in cement powder packaging, improving packaging efficiency and ensuring packaging consistency. Addressing the dust-prone and highly fluid characteristics of cement powder, the entire packaging process is closed, preventing material leakage and environmental pollution. For powders with particularly high dust levels, a dust removal function can be selected to purify the dust during packaging. Packaging speed is fast, ranging from 30 to 150 bags per minute, adaptable to different packaging needs for small and large batches of products. Various bag styles are available, including pillow-type, foldable, and upright types. Customization services are also available, including adjustments to motor power, weighing devices, and feeding methods.

How does the Cement powder packaging machine VFFS work?

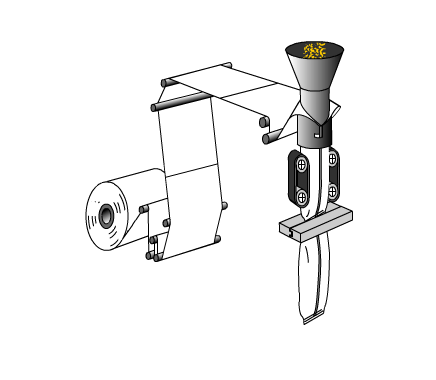

When the Cement powder packaging machine VFFS is in operation, the packaging film is first supplied through the film unwinding mechanism, then folded into a preset bag shape by the forming device and heat-sealed on the sides to form a sealed bag tube. Next, cement powder falls from the hopper into the screw feeding mechanism, where a weighing sensor accurately measures the preset weight, and the powder is injected into the bag tube at a uniform speed through the filling nozzle. Subsequently, the sealing mechanism heat-seals or sutures the bag opening to prevent powder leakage and moisture during transportation, while also marking the date. Finally, the cutting mechanism separates the powder into individual packaging bags, which are then conveyed out by the conveyor device. The entire process of forming, filling, sealing, and cutting is automated.

Cement Powder Packaging Machine VFFS Parameters

Model	GX-220DKF	GX-320DKF	GX-420DKF
Max roll film width	220mm	320mm	420mm
Bag Length	10-150mm	10-190mm	10-260mm
Bag Width	20-100mm	60-150MM	120-200MM
Filling range	1-99G	10-500G	100-1000G
Dimension(LWH)	5204201590mm	6404801700mm	8904901850mm
Power	220V/110V 50HZ/60HZ 550W		220V/110V 50HZ/60HZ 600W
Weight	70KG	94KG	101KG

What are the applications of the Cement Powder Packaging Machine VFFS?

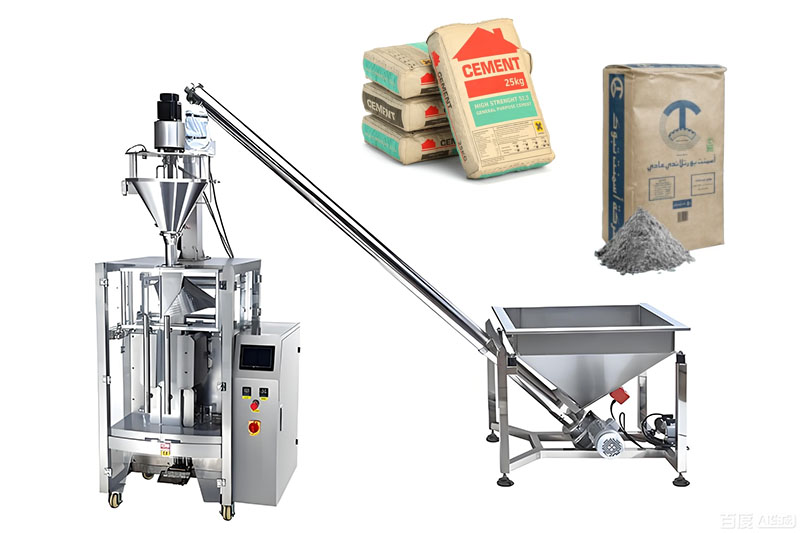

The Cement Powder Packaging Machine VFFS can be used in automated production lines in building material plants, cement plants, and cement product processing plants. It enables large-scale continuous packaging of bagged cement powder, while meeting the stacking and moisture-proof requirements of warehousing and logistics. The VFFS can package conventional cement powders such as ordinary Portland cement, slag Portland cement, composite Portland cement, and pozzolanic Portland cement. It is also suitable for cement powders with high permeability, high-early strength cement, and high-grade special cement that are prone to dust generation and have significant differences in flowability. The VFFS is used in conjunction with a front-end cement powder silo, a screw conveyor for uniform feeding, and a vibrating screen for sieving. At the back end, it connects to a weight detection machine and an automatic palletizer to control packaging accuracy. Some models also require a pulse dust collector to solve the problem of cement powder dust generation, forming a complete packaging production line from raw material output to finished product stacking, meeting the moisture-proof, leak-proof, and efficient packaging requirements of fine cement powder.

Cement Powder Packaging Machine VFFS Customer Case

A Chinese cement manufacturer, to address the low efficiency and severe dust pollution associated with traditional manual packaging of powdered building materials such as dry-mixed mortar and putty powder, implemented the Cement Powder Packaging Machine VFFS. This enabled high-speed automated production, achieving a packaging speed of 30-80 bags per minute, with precise control over the weight of each bag between 25-50 kg. Using moisture-proof materials such as laminated woven fabric or kraft paper, and featuring back-seal valve bags with adjustable dimensions (60-90cm long, 35-50cm wide), the machine not only ensures sealing strength and stacking stability but also fundamentally solves problems such as dust leakage, inaccurate measurement, and low packaging efficiency.

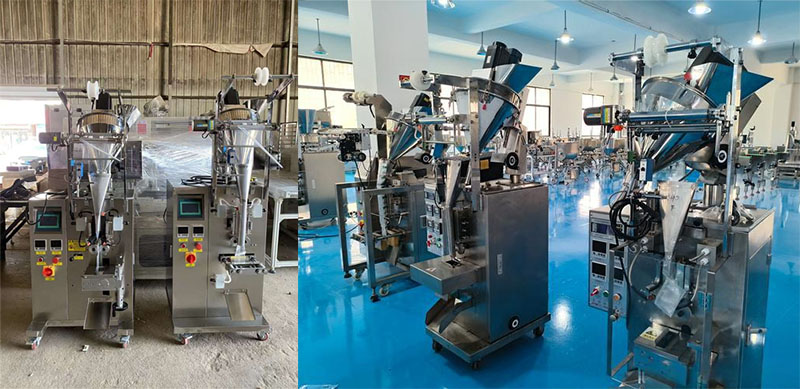

Cement Powder Packaging Machine VFFS Manufacturer

Dahan Cement Powder Packaging Machine VFFS in two types: valve-sealed and open-mouth bags. The valve-sealed type offers better dust protection. Available in fully automatic and semi-automatic models, packaging speeds typically range from 800-1200 bags/hour, with high-efficiency models exceeding 1500 bags/hour. The products are ISO and CE certified, featuring a 304 stainless steel body and imported components from Mitsubishi and Siemens, providing dustproof, explosion-proof, and high-precision metering (error ≤ ±0.2%). Customization is also available, including features such as bag weight adjustment, enhanced moisture-proof sealing, and negative pressure dust removal upgrades. Adaptable to different flowability cement powders, it can also integrate with inkjet printing, MES system integration, and automatic palletizing functions.
