Vertical Packaging Machine for Chemical Powder

What is Vertical Packaging Machine for Chemical Powder?

Vertical packaging machine for chemical powder is a fully automatic packaging equipment designed for powder materials in the chemical industry. It can package pesticide powder, dye powder, inorganic salts, mineral powder and other chemical powders. No matter how coarse or fine they are, or whether they are easy to agglomerate, they can be properly handled. The packaging speed can usually reach 25 to 120 bags per minute, and the packaging volume can be adjusted within the range of 5-5000g to meet different specifications. It can be adapted to a variety of packaging bag types such as three-side seal, four-side seal, and back seal, effectively preventing moisture and leakage, and ensuring the quality of chemical powder.

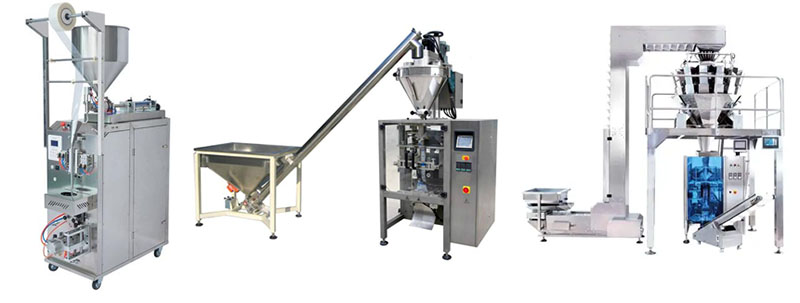

What types of Vertical Packaging Machine for Chemical Powder are there?

Vertical Packaging Machine for Chemical Powder can be divided into three types according to the metering method: screw metering type, measuring cup metering type and combined metering type, which can be selected according to packaging needs.

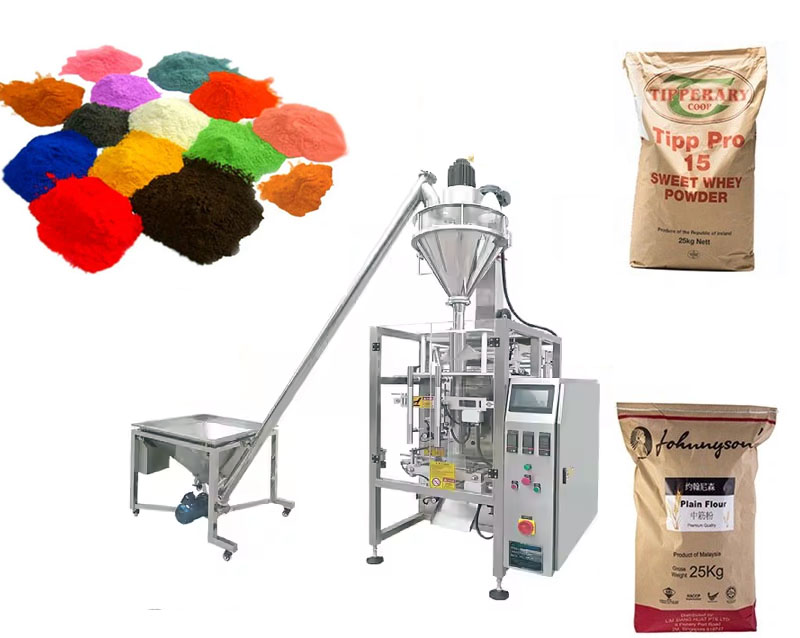

Screw metering type Vertical Packaging Machine for Chemical Powder: suitable for powders with general fluidity (such as dyes, catalysts), with an accuracy of ±0.5g

Measuring cup metering type Vertical Packaging Machine for Chemical Powder: suitable for powders with good fluidity (such as baking soda, bleaching powder), with faster speed

Combined metering type Vertical Packaging Machine for Chemical Powder: screw + weighing sensor, used for high value-added powders (such as pharmaceutical intermediates), with an accuracy of ±0.1g

Why choose Vertical Packaging Machine to pack Chemical Powder?

Vertical Packaging Machine for Chemical Powder can accurately control the packaging volume of chemical powders, and the packaging specifications are flexible and can be adjusted according to needs.

Precise metering and reduced waste: high-precision screws or combined metering systems are used to ensure consistent weight of each package, and the error can be controlled within ±0.2%-1%. The bottom filling technology developed for ultrafine powders reduces material loss caused by dust.

Efficient packaging speed: standard models have a speed of 15-120 bags/minute (depending on the packaging volume), and the KLF-60 model can reach up to 120 bags/minute, greatly improving the efficiency of the production line.

Wide material adaptability: can handle various types of chemical powders: from silicon micropowder with excellent fluidity to dye intermediates that are easy to agglomerate, stable packaging can be achieved by adjusting screw parameters and unloading mechanisms.

Flexible packaging specifications: wide range of bag sizes: width 80-460mm, length 50-280mm, meeting different needs from small sample packages to large industrial packages.

How does Vertical Packaging Machine for Chemical Powder work?

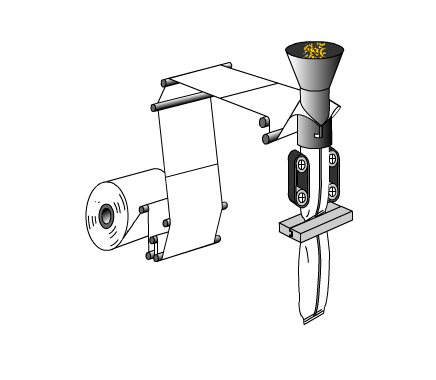

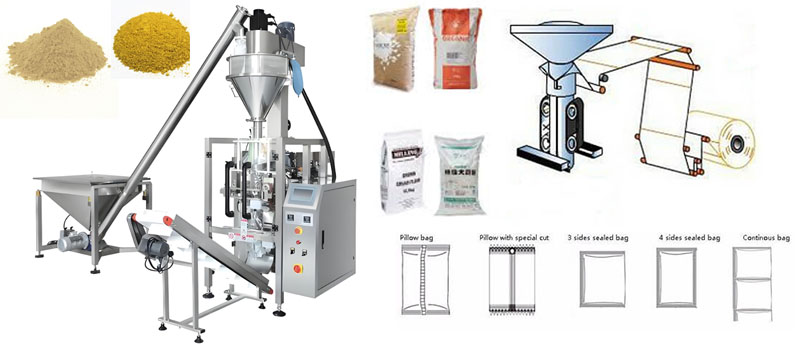

When packaging chemical powder, the Vertical Packaging Machine for Chemical Powder first forms the roll packaging film into a cylinder through a former, and the chemical powder is accurately weighed by a metering device and falls into the cylinder. The longitudinal sealing device heats and seals the side of the cylinder film to form a sealed bag, and the transverse sealing device heats and cuts the bag mouth to complete a single package. The entire process realizes the integration of bag making, metering, filling, and sealing, which is efficient and accurate.

Vertical Packaging Machine for Chemical Powder Parameters

Parameter category	Standard specifications	Optional range
Packing speed	120 bags/minute (depending on powder characteristics)	15-120 bags/minute
Measuring range	5-1000g	1g-25kg (need to replace the metering device)
Measuring accuracy	±0.5% (screw metering), ±0.2% (weighing metering)	Up to ±0.1%
Bag size	Length 50-280mm, width 40-130mm3	Minimum 30×20mm, maximum 300×200mm (customized)
Film width	240mm	80-460mm
Power requirements	220V/50Hz/2.1KW	380V/50Hz (high power model)
Air source requirements	0.6MPa, air consumption 0.35m³/min	Built-in air compressor is optional
Machine weight	300-350kg	Varies according to specifications
Dimensions	850×900×1950mm (length×width×height)	Compact minimum 700×600×1600mm
Packaging materials	PET/PE, OPP/PE, NY/AL/PE and other composite films	Special materials need to be tested
Sealing form	Three-side sealing (standard), four-side sealing, back sealing	Special-shaped sealing can be customized

What are the applications of Vertical Packaging Machine for Chemical Powder?

Vertical Packaging Machine for Chemical Powder is widely used in the chemical industry and can efficiently process powder materials of various characteristics. For inorganic chemical powders, such as metal compounds such as sodium tungstate, anti-corrosion packaging machines are used and humidity is controlled; mineral powders such as titanium dioxide require strong stirring to prevent agglomeration, and ceramic materials such as alumina require wear-resistant screws and dust-proof designs. Among organic chemical powders, plastic additives need to be packaged in a light-proof and low-oxygen environment, dyes and pigments rely on high-precision photoelectric tracking, and pharmaceutical intermediates rely on high-precision weighing and metering to ensure accuracy. In addition, for flammable, explosive, toxic, and ultra-fine special chemical powders, packaging machines are equipped with targeted designs such as explosion-proof, fully enclosed, and bottom filling. Other chemical products such as detergent raw materials, water treatment agents, and pesticide powders can also be well packaged through moisture-proof, corrosion-resistant, and highly sealed packaging machines.
