Vertical Packaging Machine for medical powder

The Vertical Packaging Machine for medical powder is a packaging machine used in the pharmaceutical industry to automatically package various types of powders. It utilizes a vertical structure and fully automates the entire process, from metering and filling to bagging and sealing. Constructed of 304 stainless steel or food-grade contact materials, the machine prevents powder contamination during the packaging process while also providing dust and moisture resistance. It is commonly used for small-dose packaging (typically 1-500g/bag) of various powder materials, including traditional Chinese medicine powders and Western medicine powders. It can pack 30-150 bags of powder per minute. Bag materials include polyethylene (PE) film, polypropylene (PP) film, and PET/AL/PE.

Vertical Packaging Machine for medical powder video

What types of vertical packaging machines are there for medical powder?

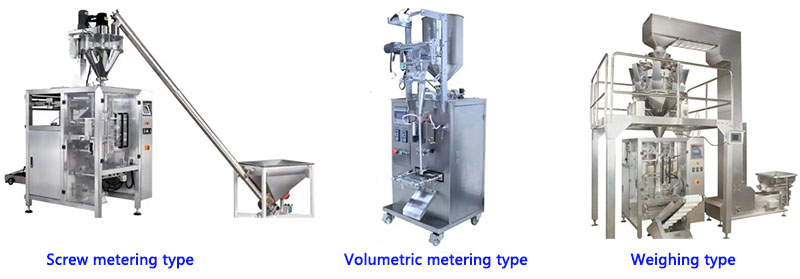

Vertical packaging machines for medical powder can be categorized by metering method: screw, volumetric, and gravimetric. The appropriate model can be selected based on the properties of the powder being packaged.

Screw-metering vertical packaging machines for medical powder: The feed rate is controlled by screw speed. This is suitable for powders with high dust production and medium fluidity (such as ultrafine traditional Chinese medicine powders), with a metering accuracy of ±1%.

Volumetric vertical packaging machines for medical powder: Using a metering cup for volumetric measurement, these machines are suitable for powders with good fluidity (such as vitamin powders). They offer high speed but slightly lower accuracy (±2%).

Gravimetric vertical packaging machines for medical powder: Equipped with an electronic scale for real-time weight feedback, these machines are suitable for valuable powders (such as antibiotic powders), with an accuracy of up to ±0.5%, but are more expensive.

What are the advantages of a vertical packaging machine for medical powder?

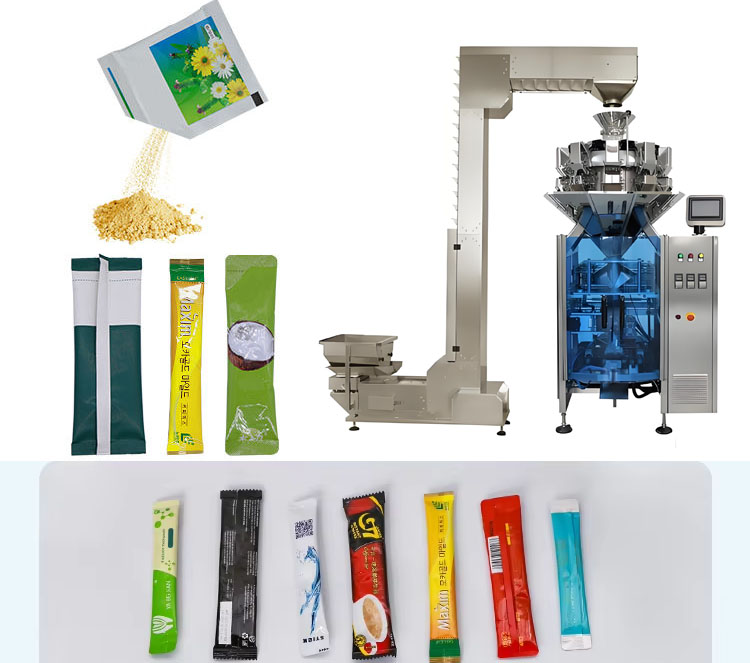

The advantages of a vertical packaging machine for medical powder include its clean, hygienic stainless steel construction, which meets pharmaceutical industry hygiene standards and effectively prevents powder contamination during the packaging process. Compared to traditional manual packaging, it utilizes high-precision weighing or screw metering devices, accurately controlling the dosage of each bag to within ±1g. Furthermore, it utilizes heat-sealing or ultrasonic sealing, providing a strong seal that prevents moisture absorption and oxidation, extending the shelf life of the powder. It also supports a variety of packaging formats, including three-side seal, four-side seal, and other bag types.

How does a Vertical Packaging Machine for Medical Powder work?

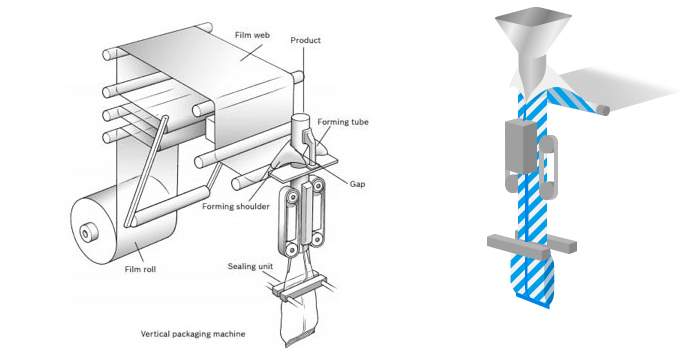

When a Vertical Packaging Machine for Medical Powder is in operation, the rolled packaging film is folded into a pre-determined bag shape (such as a pillow bag) by the machine's shaping component. A photoelectric device then determines the bag's desired length. The powder is then poured from a hopper into a weighing device (which may be a screw, a fixed measuring cup, or an electronic scale). The measured amount of powder then flows down a discharge tube and into the newly folded bag. The heated sealing blade on the machine then seals the bag tightly (some machines can also remove excess air from the bag to prevent any air pockets). Finally, a cutting blade separates the connected bags one by one, and the finished powder bags are dropped to the collection area, where they are automatically counted.

Vertical Packaging Machine for Medical Powder Technical Parameters

Model	GX-220DKF	GX-320DKF	GX-420DKF
Max roll film width	220mm	320mm	420mm
Bag Length	10-150mm	10-190mm	10-260mm
Bag Width	20-100mm	60-150MM	120-200MM
Filling range	1-99G	10-500G	100-1000G
Dimension(LWH)	5204201590mm	6404801700mm	8904901850mm
Power	220V/110V 50HZ/60HZ 550W		220V/110V 50HZ/60HZ 600W
Weight	70KG	94KG	101KG

What are the structural components of a vertical packaging machine for medical powder?

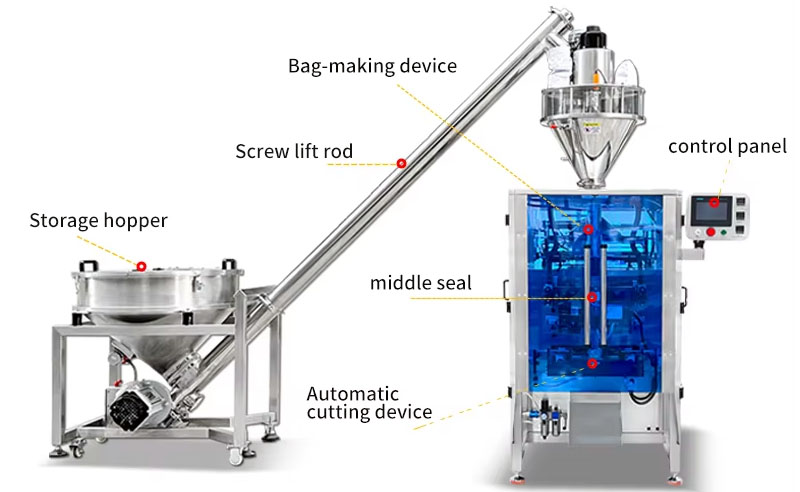

A vertical packaging machine for medical powder primarily consists of a frame (supporting the entire machine, made of 304 stainless steel with a polished surface), a feeding system (including a hopper, agitator (to prevent caking), and metering components), a bag-making system (including a former, traction rollers, and a photoelectric positioner), a sealing system (heat-sealing blades (with adjustable temperature) or ultrasonic sealing), a control system (PLC host, touch screen, emergency stop button), and a transmission system (motor, reducer, and synchronized operation of various components).

What are the applications of a vertical packaging machine for medical powder?

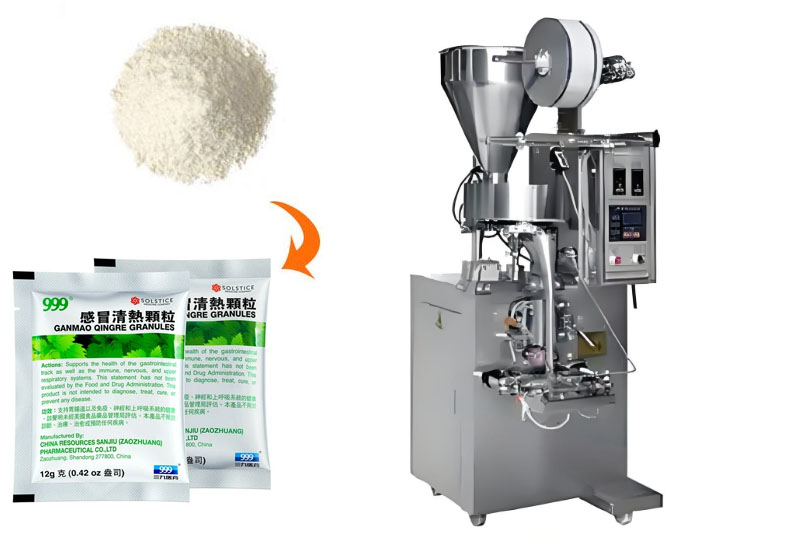

Vertical Packaging Machines for medical powder can be used to package various types of powders, including traditional Chinese medicine powders (such as Ganmao Qingre San) and wall-broken powders (such as Panax notoginseng powder) in the Traditional Chinese Medicine industry; antibiotic powders (such as amoxicillin powder) and vitamin powders (such as vitamin C powder) in the Western medicine industry; and pharmaceutical-grade health supplements such as probiotic powder and protein powder in the health supplement industry. They can also be used for packaging small-dose, high-precision products such as desensitization powders and pediatric powders. They can also be used in the pharmaceutical industry for packaging tablets, pills, and syrups.

Vertical Packaging Machines for Medical Powder Customer Cases

Customer Cases	Packaging Materials	Packaging Volume	Packaging Speed	Packaging Bag Material	Packaging Bag Dimensions (Length x Width)
Traditional Chinese Medicine Decoction Factory	Danggui Powder (Fine Powder)	5-15g/bag	60-90 bags/minute	PET/PE composite film	140 x 80mm
Probiotics manufacturer	Freeze-dried probiotic powder	1-3g/bag	80-120 bags/minute	PET/AL/PE composite film	100 x 60mm
Vitamin supplement factory	Multivitamin powder	3-8g/bag	70-100 bags/minute	PET/VMPET/PE composite film	120 x 70mm
Antibiotic Pharmaceutical Factory	Amoxicillin Powder (Medical Grade)	0.5-2g/bag	50-80 bags/minute	PET/EVOH/PE Composite Film	90 x 50mm
