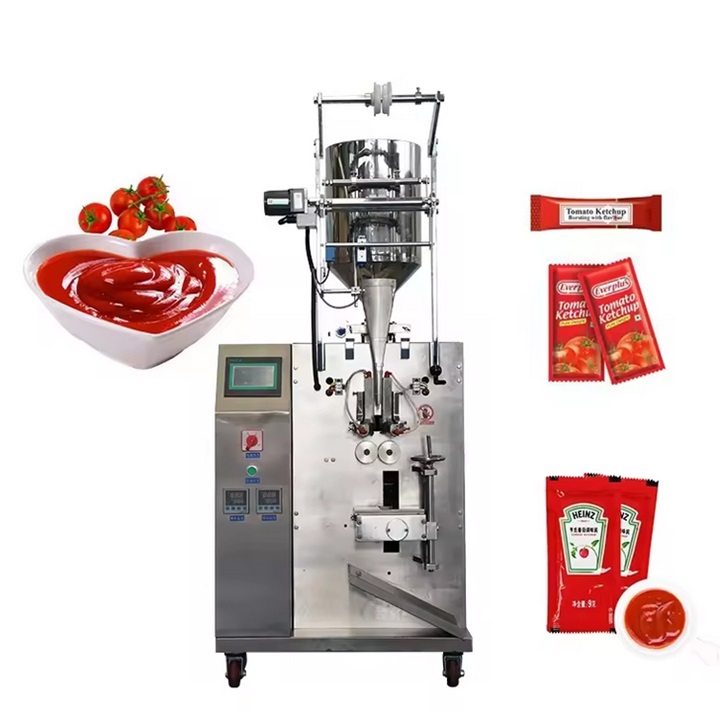

Tomato paste for vertical packaging machine

Tomato paste for Vertical packaging machine is an efficient, accurate and hygienic packaging machine. Tomato paste for Vertical packaging machine is mainly used for packaging salad dressing, hot sauce, peanut butter, umami soy sauce, rice vinegar, fruit vinegar, juice, sweet soup, gravy, soup, sauce, beverage concentrate, etc.

How does tomato paste for vertical packaging machine work?

When the Tomato paste for Vertical packaging machine is working: first, the packaging film is unfolded by the automatic film feeding device and formed into a tube by the bag maker. At the same time, the photoelectric sensor detects the color mark to ensure the alignment of the pattern; then, the ketchup is quantitatively filled into the bag by a high-precision metering pump (such as a servo rotor pump or a piston pump), and an anti-drip design is used to avoid drawing and waste13; then, the longitudinal heat sealing device seals the side of the film, and the transverse sealing and cutting mechanism completes the sealing and slitting according to the preset length to form an independent packaging bag69; finally, the finished bag is sent out through the conveyor belt, and some models can also complete date printing and counting27 simultaneously. The entire process is coordinated by the PLC control system to achieve fully automated operation to ensure efficiency, accuracy and hygiene

What are the advantages of tomato paste for vertical packaging machine?

High-speed operation, 30-80 bags per minute, 3-5 times faster than traditional manual packaging

Precise volume measurement, capacity range from 1 ml to 500 ml, ±1% measurement accuracy, ensuring consistent portion control

Adjustable metering system, even in the face of thick and sticky ketchup can maintain accurate metering, PLC control system eliminates human measurement errors

Can handle a variety of packaging bag sizes (length 30-250 mm, width 20-160 mm), support different sealing methods: back seal, three-side seal or four-side seal, suitable for a variety of packaging materials (OPP, PET, AL/PE composite film)

What products are suitable for vertical ketchup packaging machines?

Vertical ketchup packaging machines are mainly used to package ketchup and similar sauces, paste products and liquid condiments. Here are some examples of products suitable for vertical ketchup packaging machines:

Food: salad dressing, mayonnaise, peanut butter, hot sauce, soy sauce, honey, etc.

Personal care: shampoo, shower gel, body lotion, makeup cream, conditioner, disinfectant hand sanitizer, etc.

Bag Types

The tomato ketchup packaging machine can achieve multiple sealing methods such as back sealing, three-side sealing, four-side sealing, etc.

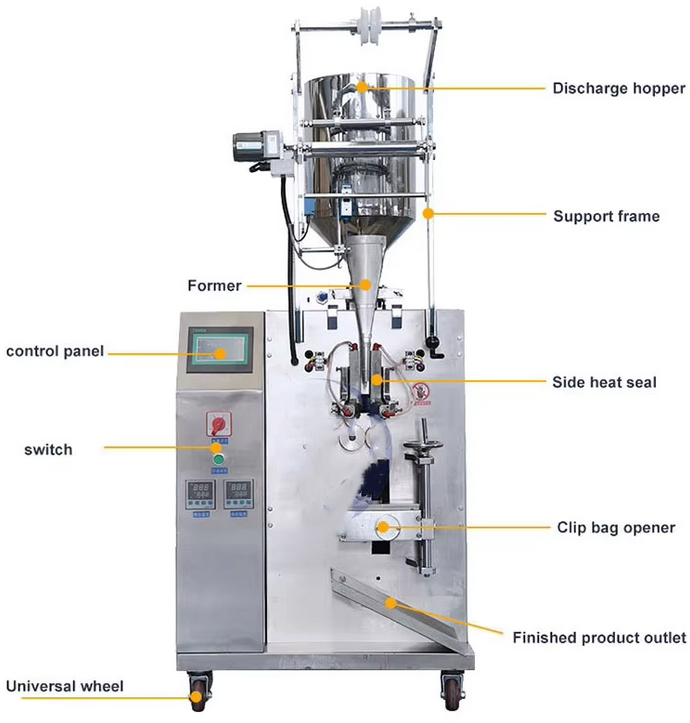

What are the structures of tomato paste for vertical packaging machine?

Vertical ketchup packaging machine mainly consists of hopper, filling system, sealing system, packaging system and control system structure

Tomato paste for Vertical packaging machine Customer Case

Application scenario	Packing volume	Packing speed	Packing size	Packaging bag material
Single or small servings of ketchup products sold in supermarkets and convenience stores by a food seasoning manufacturer in Pakistan	50g/bag	40-60 bags/minute	70mm (width) x 100mm (length) pillow-type back-sealed bag	Combined films such as PET/AL/PE or PET/VMPET/PE are often used to ensure good barrier properties (oxygen and moisture resistance) and shelf life, and are suitable for printing exquisite patterns
A raw material supplier for medium-sized ketchup packaging for restaurants, fast food restaurants and hotels	500g/bag	25 - 35 bags/minute	150mm (width) x 220mm (length) pillow-type back-sealed bag	Choose composite materials with better toughness and stronger barrier properties, such as PA/PE or composite films with aluminum foil layers (such as PET/AL/PA/PE)
A large food processing company in the United States uses ketchup as a raw material for the production of other products (such as sauces, soups, pre-prepared dishes, etc.)	1000g (1kg) or 2000g (2kg) per bag	15 - 25 bags/minute	Take 1000g as an example, about 180mm (width) x 280mm (length) or larger	Thickened PA/PE or multi-layer composite materials with reinforcement layer
